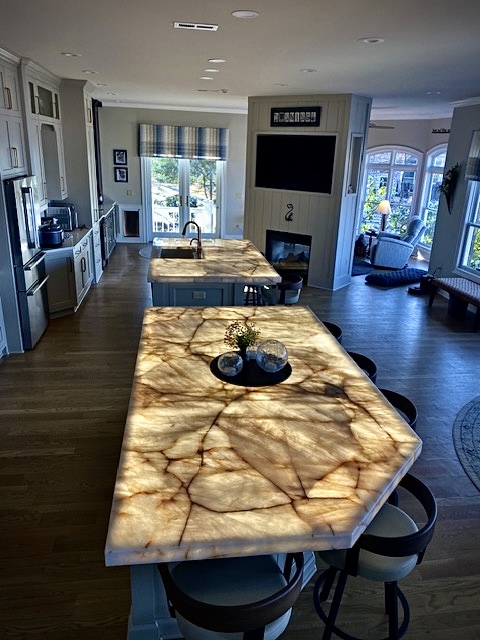

Custom LED backlighting for two Cristallo Quartzite kitchen islands using nine frameless edge-lit LED light panels.
The Dowdie Residence in Braselton, Georgia features two illuminated Cristallo Quartzite kitchen islands, each requiring a custom LED panel layout to accommodate the unique countertop geometry.
This project demonstrates how a professionally designed LED backlighting system can reveal the natural crystalline structure, depth, movement, and veining within translucent quartzite while maintaining the strength and functionality of a conventional stone countertop.
Rather than adapting standard-size lighting products to the finished countertops, each frameless LED light panel was custom manufactured to suit the final illuminated areas. This allowed the lighting system to follow the island shapes closely and provide smooth, consistent illumination beneath the stone.
Project Overview
The kitchen includes two separate illuminated islands, each presenting a different backlighting challenge.
The primary island features a U-shaped countertop surrounding an integrated sink. Custom-shaped LED panels were used around the sink area to maximize illuminated coverage and maintain consistent light distribution throughout the countertop.
The secondary island consists primarily of a rectangular countertop layout with a custom angled corner. The angled section improves the clearance and walking space between the island and the main kitchen countertops while adding another custom element to the lighting design.
The completed installation uses nine custom frameless edge-lit LED light panels across approximately 63.31 square feet of illuminated Cristallo Quartzite.
Product Details
- Featured Project: Dowdie Residence
- Location: Braselton, Georgia, USA
- Stone Material: Cristallo Quartzite
- Application: Dual Backlit Kitchen Islands
- Total Illuminated Area: Approximately 63.31 sq. ft.
- LED Panel Quantity: 9 Custom LED Light Panels
- LED Panel Type: Frameless Edge-Lit Acrylic LED Panels
- Panel Thickness: 6 mm, approximately ¼ inch
- Colour Temperature: 4000K Neutral White
- Horizontal Spacer: ½-inch Clear Acrylic Spacer
- Stone Edge Detail: 45-Degree Mitred Edge Construction
Custom LED Panel Layout
Area One – U-Shaped Island
The first island required three custom LED panels to accommodate the U-shaped layout and integrated sink area.
- Panel 1: Custom-shaped LED panel
- Panel 2: Rectangular LED panel
- Panel 3: Custom-shaped LED panel
Area Two – Secondary Island
The second island required six LED panels, including a custom triangular corner panel designed to follow the angled countertop section.
- Panels 4, 5, 6, 8 and 9: Rectangular LED panels
- Panel 7: Custom triangular corner LED panel
Why Cristallo Quartzite Is Ideal for Backlighting
Cristallo Quartzite is one of the most popular natural stones for illuminated countertops and kitchen islands because of its exceptional translucency and crystalline internal structure.
When the stone is not illuminated, it retains the appearance of a premium natural quartzite countertop. Once the LED backlighting is switched on, light travels through the translucent areas and reveals depth, movement, crystal formations, mineral patterns, and veining that may not be visible under conventional room lighting.
Every Cristallo Quartzite slab is different. The translucency, colouring, mineral density, and light transmission can vary significantly from one slab to another. For this reason, testing the actual slab before fabrication is strongly recommended whenever possible.
Why Custom Frameless LED Panels Were Used
Nu World supplies both custom frameless LED light panels and flexible LED light sheets. Both systems have appropriate applications, but custom frameless panels are often preferred for residential countertops and kitchen islands because they simplify installation and reduce the number of electrical connections.
For the Dowdie Residence, the custom panel approach allowed the lighting system to accommodate the U-shaped sink area, angled corner, cabinet layout, panel seams, and required wire exits.
Using fewer custom-sized panels generally means fewer wire exits, fewer electrical connections, less installation labour, and a cleaner finished lighting system beneath the stone.
Backlit Countertop Layering Method
The horizontal backlighting assembly specified for this project consisted of the following layers:
- Kitchen cabinetry and structural support
- Plywood or MDF subtop
- Nu World custom frameless LED light panels
- ½-inch clear acrylic spacer and support layer
- Cristallo Quartzite countertop
The clear acrylic spacer creates separation between the LED panels and the underside of the stone. This additional distance allows the light to blend before it reaches the quartzite, helping reduce visible brightness variations and supporting more consistent illumination across the finished countertop.
The acrylic also provides a continuous support surface above the LED panels so the stone does not rest directly on the lighting components.
Mitred Edges for Better Light Transfer
The stone fabricator used 45-degree mitred edges rather than simply laminating or doubling the stone at the perimeter.
A properly fabricated mitred edge is generally the preferred approach for backlit countertops because it allows light to transfer more effectively into the edge detail. Laminated edges can create additional material thickness and bonding lines that restrict light transmission around the corner.
Our 6 mm LED panels can be positioned tightly against the inside of the stone mitre. Where required, the edge banding can be removed from the corresponding LED panel edge, exposing the bright acrylic panel edge and directing more light into the inside corner of the mitre.
This method can often illuminate a mitred drop of up to approximately three inches without requiring a separate vertical LED panel. Deeper waterfall faces or vertical drops may require additional lighting behind the vertical stone surface.
4000K Neutral White LED Backlighting
This project uses 4000K neutral white LEDs. Neutral white is a popular colour temperature for Cristallo Quartzite because it provides a clean, balanced appearance without making the stone look excessively warm or cool.
The ideal colour temperature ultimately depends on the individual slab, surrounding cabinetry, flooring, wall finishes, and the overall interior design. Testing the stone over several colour temperatures before ordering the final lighting system is recommended whenever practical.
Applications for Custom LED Backlighting
Nu World custom LED light panels can be manufactured for many translucent architectural materials and applications, including:
- Backlit Cristallo Quartzite countertops
- Backlit Blue Cristallo reception desks
- Backlit Onyx kitchen islands
- Illuminated waterfall countertops
- Backlit kitchen backsplashes
- Translucent stone feature walls
- Backlit bars and hospitality counters
- Illuminated bathroom vanities
- Hotel and commercial reception desks
- Backlit marble and semi-precious stone
- Translucent porcelain, glass, resin, and solid-surface materials
Planning a Backlit Cristallo Quartzite Project
Successful backlit stone installations require coordination between the homeowner, interior designer, architect, cabinetmaker, electrician, stone fabricator, and lighting supplier.
The final lighting design may be influenced by:
- The translucency and thickness of the selected stone
- The dimensions of the illuminated area
- Sink, cooktop, and appliance cut-outs
- Panel seams and custom shapes
- Mitred edges and waterfall faces
- Wire exit locations
- Power supply capacity and accessibility
- Dimming and control requirements
- Required spacing between the LED panels and stone
Planning these details before the stone is fabricated helps prevent avoidable installation problems and allows the lighting system to be manufactured specifically for the finished application.
